NG Series Nitrogen Generators | Laboratory PSA & Membrane Technology

Choose Your Format

Five product families for every lab

From compact benchtop PSA units to high-flow membrane systems, the NG Series covers every nitrogen application — from single-instrument supply to central lab distribution.

🔬

NG EOLO Series

Compact PSA benchtop units. Ultra-high purity up to 99.9999% for GC-FID, LC-MS, and single-instrument supply.

4 models · 500–4000 cc/min

📐

NG EOLO XL

Floor-standing PSA generators with internal nitrogen tank. Up to 99.9999% purity. ZNG variant adds CH4 scrubbing.

7 models · 5 / 10 / 16 / 18 L/min

🧪

NG SIRIO Series

High-flow PSA generators with dual built-in piston compressors. Stackable with HG and ZA units.

CD / CD HP · up to 20 L/min

🖥️

NG RACK Series

Standard 19" rack-mount PSA nitrogen generators for instrument bays. 4U, 5U, and 7U profiles available.

3 families · 150 cc–2000 cc/min

📊

NG CASTORE XS iQ

Integrated scroll-compressor units — no external air supply needed. LC-MS grade with touchscreen controls.

4 models · 15 / 18 / 24 / 36 L/min

🗄️

NG CASTORE XL iQ

High-capacity integrated compressor systems. LC-MS and 3D laser printing variants. Optional UHP collision cell outlet.

5 models · 20–70 L/min

🏭

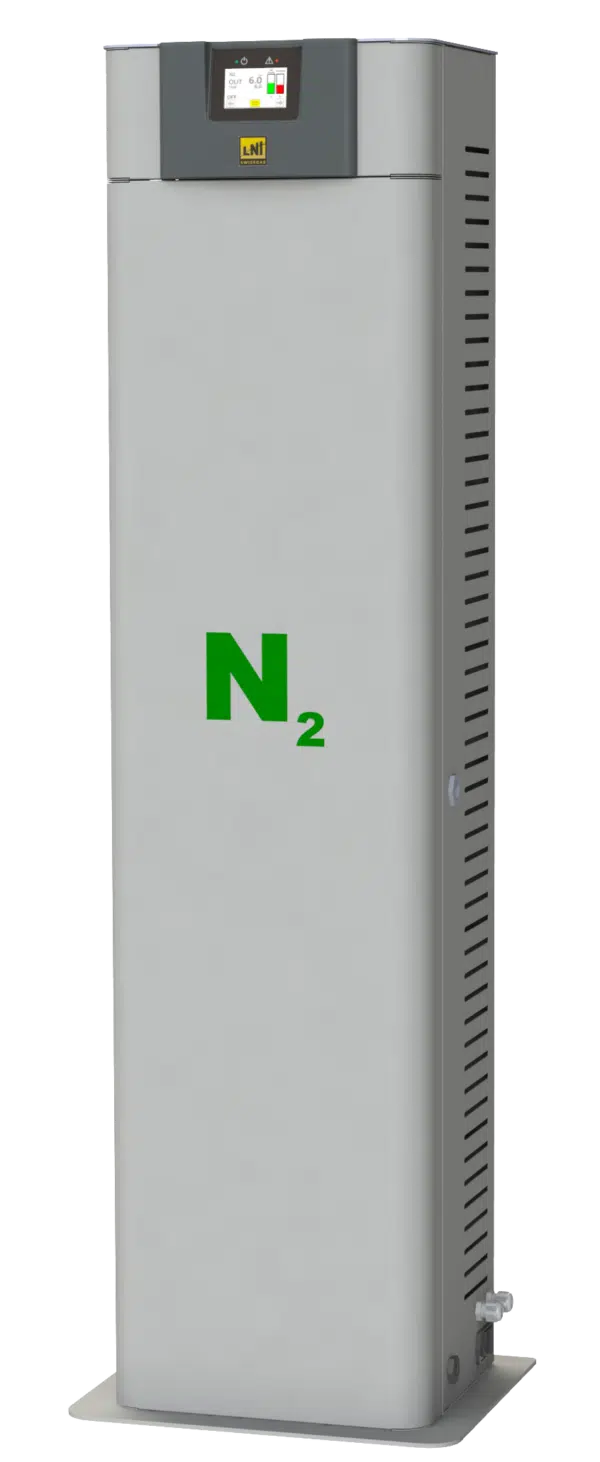

NG CASTORE BASIC / PRO

High-volume membrane generators for central lab supply and industrial applications. Requires compressed air source.

Multiple models · 10–350 L/min

🖨️

CASTORE XL iQ 3D Printing

Purpose-built for 3D laser printing. Laser-grade nitrogen reduces oxygen in build chambers to prevent oxidation.

1 model · up to 70 L/min · 9 bar

🔗

NGA CASTORE iQ Series

Nitrogen + dry air from one unit. Instrument-specific models for SCIEX, Shimadzu, PerkinElmer QSight, Agilent MP-AES, and universal LCMS.

7 models · N₂ 15–40 L/min + Air

Benchtop PSA Models

NG EOLO Series

Ultra-high purity compact PSA generators. Ideal for GC-FID make-up gas, LC evaporator nitrogen, and sample preparation. No external compressed air required.

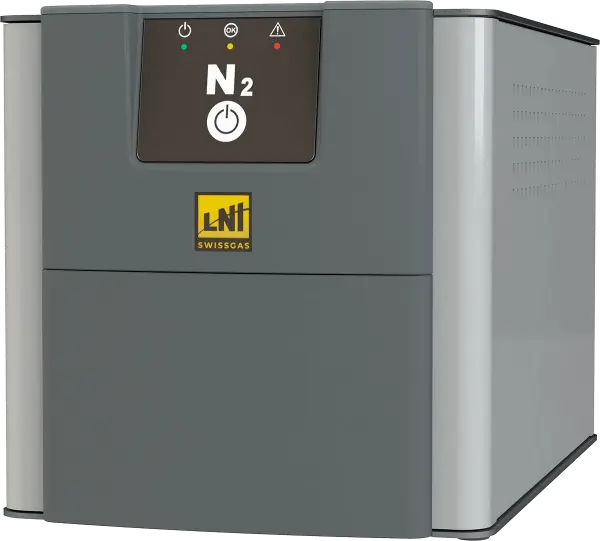

EOLO 500

NG EOLO 500

500 cc/min

Purity99.9999%
Dew Point<−60°C
THC<0.1 ppm
Size (W×D×H)27×48×28 cm

Ultra-compact PSA unit for single GC-FID instrument supply. Long-life molecular sieve drying.

EOLO 750

NG EOLO 750

750 cc/min

Purity99.9999%
Dew Point<−60°C
THC<0.1 ppm
Size (W×D×H)27×48×28 cm

Ideal for GC-FID and LC evaporator applications requiring moderate flow rates.

EOLO 1300

NG EOLO 1300

1300 cc/min

Purity>99.995%
Dew Point<−60°C
THC<0.1 ppm
Size (W×D×H)27×48×28 cm

Mid-range PSA unit for multiple detectors or high-demand instruments.

EOLO 4000

NG EOLO 4000

4000 cc/min

Purity>99.0%
Dew Point<−60°C
THC<0.1 ppm
Size (W×D×H)27×48×28 cm

High-flow benchtop PSA unit for ELSD, sample evaporation, or multi-instrument supply.

Floor-Standing PSA Models

NG EOLO XL Series

High-capacity PSA generators with internal nitrogen tank and exclusive electronic flow control. Up to 99.9999% purity from external compressed air. The ZNG EOLO XL variant adds an integrated CH4 catalyst module for hydrocarbon removal below 0.1 ppm.

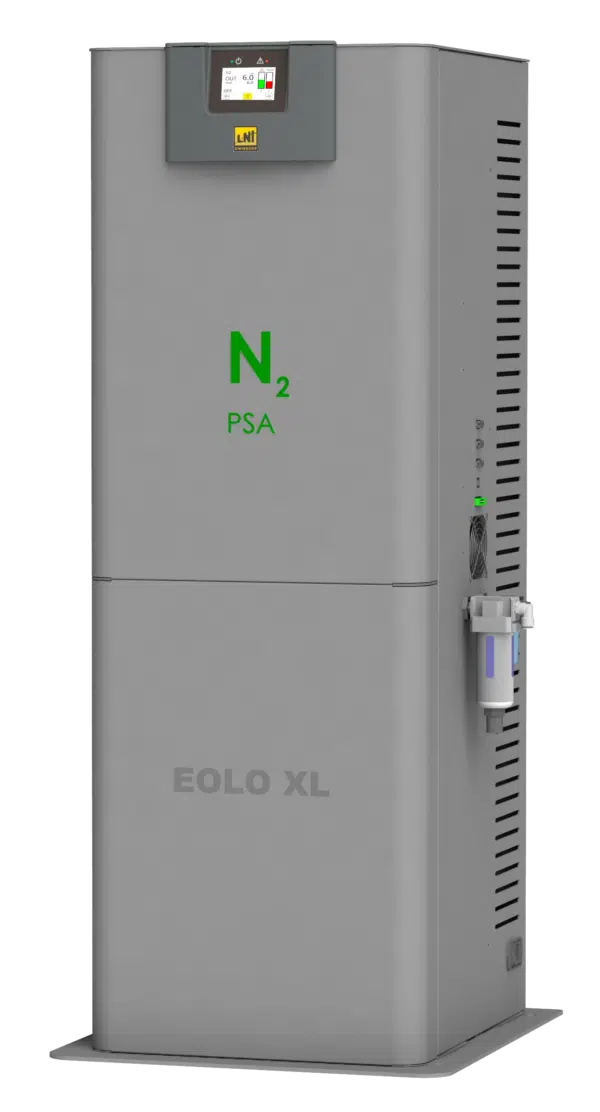

EOLO XL 5

NG EOLO XL 5

5 L/min

Purity99.9999%
Dew Point<−50°C
Air Inlet75 L/min max
Size (W×D×H)50×56×120 cm

For GC, ICP, TOD, DMA, TMA, TGA, and DSC applications.

EOLO XL 10

NG EOLO XL 10

10 L/min

Purity99.9999%
Dew Point<−50°C
Air Inlet95 L/min max
Size (W×D×H)50×56×120 cm

EOLO XL 16

NG EOLO XL 16

16 L/min

Purity99.9995% @ 16 L/min
Dew Point<−50°C
Air Inlet110 L/min max
Size (W×D×H)50×56×120 cm

EOLO XL 18

NG EOLO XL 18

18 L/min

Purity99.999% @ 18 L/min
Dew Point<−50°C
Air Inlet120 L/min max
Size (W×D×H)50×56×120 cm

Highest capacity EOLO XL. ZNG variant available with integrated CH4 catalyst oven (<0.1 ppm HC).

ZNG EOLO XL Variant

The ZNG EOLO XL series adds an integrated catalyst module that removes hydrocarbons to <0.1 ppm — ideal for GC applications requiring ultra-clean carrier gas. Available in 5, 10, and 18 L/min configurations.

High-Flow PSA Models

NG SIRIO Series

High-capacity PSA nitrogen generators for demanding labs. Floor-standing units with RS-485 connectivity and optional hydrocarbon scrubbing down to <0.05 ppm.

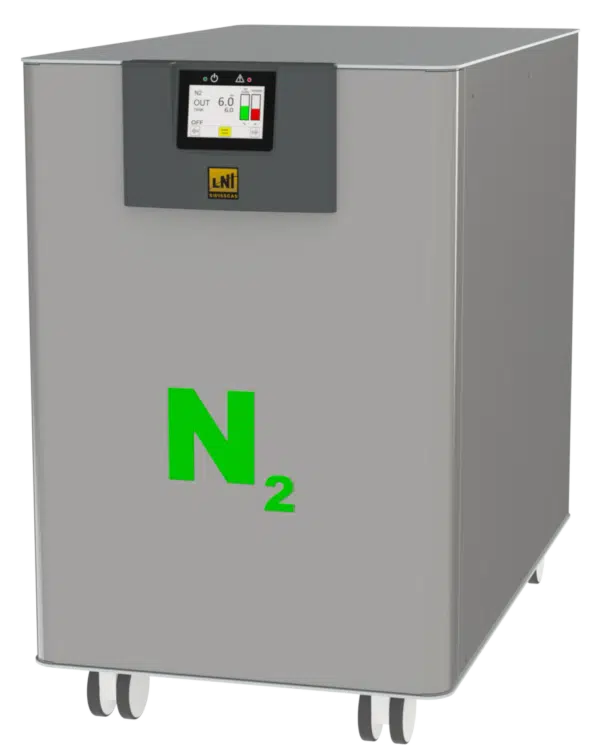

SIRIO 1500

NG SIRIO 1500

1500 cc/min

Purity99.9999%
Pressure80 psi (5.5 bar)
Dew Point<−60°C
Size (W×D×H)43×75×68 cm

SIRIO 3000

NG SIRIO 3000

3000 cc/min

Purity99.9995%
Pressure80 psi (5.5 bar)
Dew Point<−60°C
Size (W×D×H)43×75×68 cm

SIRIO 5000

NG SIRIO 5000

5000 cc/min

Purity99.99%
Pressure80 psi (5.5 bar)
Dew Point<−60°C
Size (W×D×H)43×75×68 cm

SIRIO 5000 HP

NG SIRIO 5000 HP

5000 cc/min @ 8 bar

Purity99.999%
Pressure116 psi (8 bar)
Dew Point<−60°C
Size (W×D×H)43×75×68 cm

High-pressure variant for applications requiring elevated delivery pressure.

SIRIO 8000

NG SIRIO 8000

8000 cc/min

Purity99.7%
Pressure80 psi (5.5 bar)
Dew Point<−60°C
Size (W×D×H)43×75×68 cm

Maximum flow PSA model. Ideal for central lab supply to multiple instruments simultaneously.

Integrated Compressor PSA Models

NG SIRIO CD / CD HP

Self-contained PSA generators with two smart, long-life 100% oil-free piston compressors built in — no external compressed air needed. Up to 99.999% purity at 20 L/min. Stackable with HG and ZA units.

SIRIO CD

NG SIRIO CD

20 L/min

PurityUp to 99.999%
Pressure (Max)80 psi (5.5 bar)
Dew Point<−60°C
Noise<58 dB(A)
Size (W×D×H)43.5×82×68 cm

Standard pressure variant. Dual 100% oil-free built-in piston compressors. Stackable design. Available in 220–240 VAC and 100–115 VAC versions.

SIRIO CD HP

NG SIRIO CD HP

20 L/min @ 7 bar

PurityUp to 99.999%
Pressure (Max)100 psi (7 bar)
Dew Point<−60°C
Noise<58 dB(A)
Size (W×D×H)43.5×82×68 cm

High-pressure variant delivering up to 7.0 bar — ideal for applications requiring elevated delivery pressure. Same footprint and compressor design as the CD.

19" Rack-Mount Models

NG RACK Series

Standard 19" rack-form PSA nitrogen generators for integration into instrument bays and lab benches. Three profiles — 4U with integrated compressor, 5U and 7U requiring external compressed air. Optional CH4 scrubber and desiccant columns available across the range.

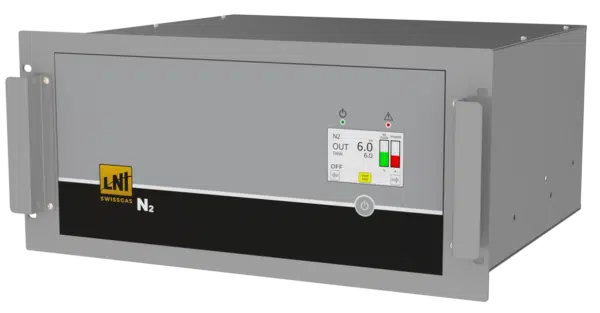

RACK 4U C

NG RACK 4U C

150 or 500 cc/min

Purity>99.9999% (150 cc)
Pressure (Max)5.5 bar / 4 bar
Air SourceBuilt-in compressor
HC Content<0.05 ppm (opt.)
Dimensions19" Rack 4U · 54 cm deep

Only rack model with integrated oil-free compressor — truly standalone. Optional catalyst oven for HC removal. For ICP, ELSD, GC, FTIR, incubators.

RACK 5U

NG RACK 5U

600 or 1000 cc/min

Purity>99.9999% (600 cc)
Pressure (Max)Inlet – 2 bar · up to 8 bar
Air SourceExternal required
Dew Point<−60°C
Dimensions19" Rack 5U · 48 cm deep

Stackable with HG and ZA units. Optional CH4 oven scrubber for HC removal to <0.05 ppm. Requires external compressed air (ISO 8573-1 Class [1:3:1]).

RACK 7U

NG RACK 7U

2000 cc/min

Purity>99.9999%
Pressure (Max)Inlet – 2 bar · up to 8 bar
Air SourceExternal required
Dew Point<−60°C
Dimensions19" Rack 7U · 55 cm deep

Highest-flow rack model. Optional CH4 scrubber option. Stackable with HG and ZA generators for complete gas panel solutions.

Integrated Compressor Models

NG CASTORE XS iQ Series

Self-contained units with built-in scroll compressor — simply plug in and produce LC-MS grade nitrogen. No compressed air infrastructure required.

XS iQ 15

NG CASTORE XS iQ 15

15 L/min

PurityLC-MS Grade
Pressure116 psi(8 bar)
Dew Point<−60°C
Size (W×D×H)51×85×69 cm

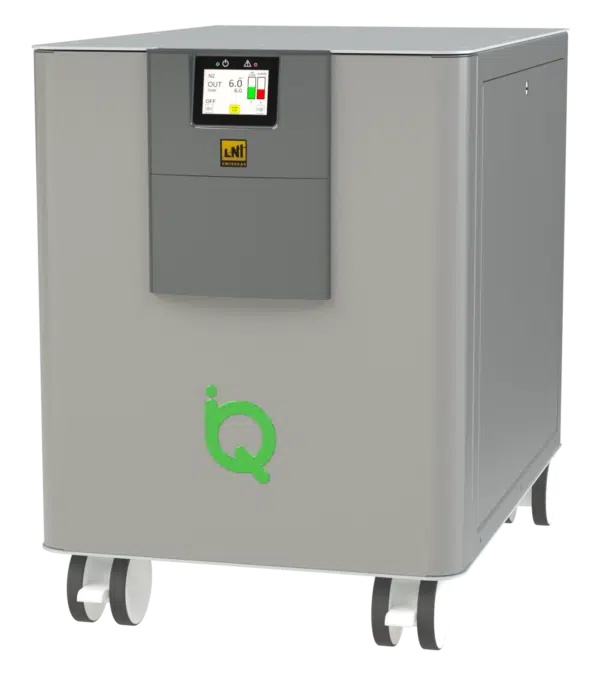

XS iQ 18

NG CASTORE XS iQ 18

18 L/min

PurityLC-MS Grade
Pressure116 psi (8 bar)
Dew Point<−60°C
Size (W×D×H)51×85×69 cm

XS iQ 24

NG CASTORE XS iQ 24

24 L/min

PurityLC-MS Grade
Pressure116 psi (8 bar)
Dew Point<−60°C
Size (W×D×H)51×85×69 cm

XS iQ 36

NG CASTORE XS iQ 36

36 L/min

PurityLC-MS Grade
Pressure116 psi (8 bar)
Dew Point<−60°C
Size (W×D×H)51×85×69 cm

Highest flow XS iQ model. Ideal for multiple LC-MS instruments or high-demand evaporators.

High-Capacity Integrated Models

NG CASTORE XL iQ Series

High-capacity self-contained nitrogen generators with integrated scroll compressor. Optional UHP collision cell outlet at 99.9999% for ICP-MS applications. No external compressed air required.

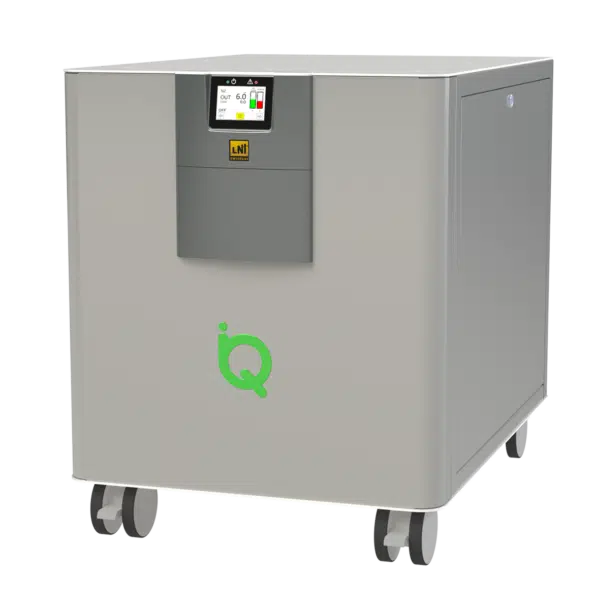

XL iQ 20

NG CASTORE XL iQ 20

20 L/min

PurityLC-MS Grade
Pressure116 psi (8 bar)
UHP Option200 cc/min @ 99.9999%
Size (W×D×H)59×92×73 cm

Dual-purpose: LC-MS grade bulk nitrogen + optional UHP collision cell supply for ICP-MS.

XL iQ 40

NG CASTORE XL iQ 40

40 L/min

PurityLC-MS Grade
Pressure116 psi (8 bar)
UHP Option200 cc/min @ 99.9999%
Size (W×D×H)59×92×73 cm

XL iQ 50

NG CASTORE XL iQ 50

50 L/min

PurityLC-MS Grade
Pressure116 psi (8 bar)
UHP Option200 cc/min @ 99.9999%
Size (W×D×H)59×92×73 cm

XL iQ 70

NG CASTORE XL iQ 70

70 L/min

PurityLC-MS Grade
Pressure116 psi (8 bar)
UHP Option200 cc/min @ 99.9999%
Size (W×D×H)59×92×73 cm

Highest capacity XL iQ model for large labs or multi-instrument central supply.

XL iQ 50 LCMS

NG CASTORE XL iQ 50

50 L/min · Agilent LCMS

PurityLCMS Grade (99.9%)
Pressure (Max)116 psi (8 bar)
UHP N₂ Option200 cc/min @ 99.9999%
Power1.8 kW (220V) / 1.5 kW (115V)
Size (W×D×H)59×92×73 cm

Purpose-engineered for all Agilent LCMS applications. Dual N₂ outlets — bulk LCMS grade plus optional 200 cc/min UHP collision cell supply at 99.9999%. Full-range power supply model available (115–240 VAC).

3D PRINTING

NG CASTORE XL iQ 3D Printing

70 L/min · 9 bar

Purity<500 ppm O₂ @ 10 L/min
Pressure (Max)130 psi (9 bar)
Noise<50 dB(A)
Power2.2 kW · 220–240 VAC
Size (W×D×H)59×92×73 cm

Engineered specifically for 3D laser printing environments. Produces laser-grade nitrogen to reduce oxygen in build chambers and prevent material oxidation during SLS/SLM processes. Programmable flow algorithm (Set Flow Begin/End/Time) for chamber purge cycles. Designed for 24/7 industrial operation.

NGA Series — Nitrogen + Dry Air Combo

NGA CASTORE XL iQ — Instrument-Specific Generators

The NGA (NitroGen + AirGen) CASTORE series produces both LC-MS grade nitrogen and dry instrument air from a single integrated unit. Each model is purpose-engineered to match the exact gas, flow, purity, and pressure requirements of a specific LC-MS platform — plug in and run. All include VOC carbon filtration, direct drive scroll compressor, and automatic standby.

Universal — All LCMS / MP-AES

NGA XL iQ 20.40

NGA CASTORE XL iQ 20.40

N₂: 20 L/min · Air: 40 L/min

N₂ PurityLCMS Grade (99.9%)
N₂ Pressure130 psi (9 bar)
Air Pressure145 psi (10 bar)
UHP Option200 cc/min @ 99.9999%
Power1.3 kW

Compatible with all LCMS instruments. Optional UHP N₂ collision cell outlet. Dual outlets independently regulated.

NGA XL iQ 40.40

NGA CASTORE XL iQ 40.40

N₂: 40 L/min · Air: 40 L/min

N₂ PurityLCMS Grade (99.9%)
N₂ Pressure130 psi (9 bar)
Air Pressure145 psi (10 bar)
UHP Option200 cc/min @ 99.9999%
Power1.8 kW

Highest N₂ flow universal NGA model. Ideal for multi-instrument labs or high-demand evaporation workflows.

NGA XL iQ 20.60

NGA CASTORE XL iQ 20.60

N₂: 20 L/min · Air: 60 L/min

N₂ PurityLCMS Grade (99.9%)
N₂ Pressure130 psi (9 bar)
Air Pressure145 psi (10 bar)
UHP Option200 cc/min @ 99.9999%
Power1.7 kW

High-air-volume variant. Suited for Agilent MP-AES and instruments requiring elevated dry air flow alongside LCMS-grade nitrogen.

MP AES

NGA CASTORE XL iQ MP AES

N₂: 40 L/min · Air: 40 L/min

N₂ Purity<500 ppm O₂ @ 10 L/min
N₂ Pressure116 psi (8 bar)
Air Pressure116 psi (8 bar)
Air Dew Point<−30°C
Power2.2 kW

Purpose-built for Agilent MP-AES. VOC carbon filter included. SWAGELOK-compatible fittings. Also suitable for LCMS and solvent evaporation.

Instrument-Specific — Plug & Play Compatibility

SCIEX

NGA CASTORE XL iQ SCIEX

N₂: 20 L/min · 2× Dry Air: 30 L/min

N₂ PurityLCMS Grade (99.9%)
N₂ Pressure116 psi (8 bar)
Air Outlets101 psi (7 bar) + 58 psi (4 bar) independently
Air Dew Point<−40°C
Fittings¼" SWAGELOK compatible

Configured for SCIEX triple quad and other SCIEX LCMS platforms. Three independently regulated outlets (1× N₂ + 2× dry air). VOC carbon filter. Full-range 115–240 VAC model available.

SCIEX 7500

NGA CASTORE XL iQ SCIEX 7500

N₂: 32 L/min · 2× Dry Air outlets

N₂ PurityLCMS Grade (99.9%)
N₂ Pressure65 psi (4.5 bar)
Air Outlet 126 L/min @ 105 psi (7.25 bar)
Air Outlet 225 L/min @ 105 psi (7.25 bar)
Fittings¼" SWAGELOK compatible

Engineered specifically for the SCIEX triple quad 7500. Higher N₂ flow (32 L/min) and dual independently controlled dry air outlets for Gas 1/Gas 2/Bath gas roles. VOC carbon filter, automatic standby, optional O₂ sensor.

SHIMADZU

NGA CASTORE XS iQ SHI

40 L/min N₂ + Air combined

N₂ PurityLCMS Grade (99.9%)
Pressure (Max)115 psi (8 bar)
N₂ Dew Point<−30°C
Power1500 W
Size (W×D×H)51×85×69 cm

Compatible with Shimadzu LCMS-8040, 8045, 8050, and 8060. Compact XS footprint with dual N₂ + dry air outlets. Rated to 4,000 m altitude. Full-range 110–240 VAC model available. VOC carbon filter included.

QSIGHT

NGA CASTORE XL iQ QSight

N₂: 15 L/min · Air: 34–67 L/min

N₂ PurityLCMS Grade (99.9%)
N₂ Pressure115 psi (8 bar)
Air Dew Point<−20°C
ConfigurationsSingle or Dual Source
Size (W×D×H)59×92×73 cm

Purpose-built for PerkinElmer QSight LC-MS/MS instruments. Available in Single Source (34 L/min air) or Dual Source (67 L/min air) configurations for single or tandem instrument setups. Parallel Controller Box with LAN port optional.

What does NGA mean?

NGA stands for NitroGen + AirGen. These units generate both nitrogen and dry instrument air simultaneously from a single compressor and membrane system — eliminating the need for a separate compressed air source or standalone air dryer. Each NGA model is pre-configured for a specific instrument platform with factory-set pressure regulators and flow rates matching OEM requirements.

Pneumatic Membrane · External Air Required

NG CASTORE BASIC

Pneumatically controlled membrane nitrogen generators — no electrical components, no moving parts, zero noise. Wall or floor mountable. Requires an external compressed air source (ISO 8573-1 Class [2:4:1]). Available in compact 10–60 L/min configurations with optional 40 L/min dry air outlet, plus high-volume 150, 180, 200, and 350 L/min models for central facility supply.

Standard Models — 10 to 60 L/min

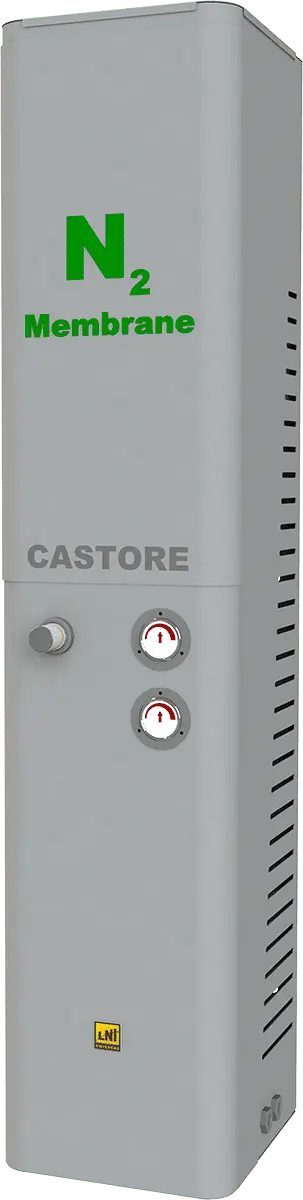

BASIC 10

NG CASTORE BASIC 10

10 L/min

Purity>99.5% @ 5 L/min
Pressure Inlet – 14.5 psi (1 bar)
NoiseNone (no moving parts)
Size (W×D×H)28×35×120 cm

Compact wall-mount LCMS nitrogen supply. No electrical parts. Optional 50 L N₂ tank accessory.

BASIC 25

NG CASTORE BASIC 25

25 L/min

Purity>99.5% @ 10 L/min
PressureInlet – 14.5 psi (1 bar)
NoiseNone (no moving parts)
Size (W×D×H)28×35×120 cm

LCMS and solvent evaporation. BASIC 25.40 variant adds 40 L/min dry air outlet.

BASIC 45

NG CASTORE BASIC 45

45 L/min

Purity>99.5% @ 25 L/min
PressureInlet – 14.5 psi (1 bar)
NoiseNone (no moving parts)
Size (W×D×H)28×35×120 cm

Mid-range flow for multiple LCMS instruments. BASIC 45.40 adds 40 L/min dry air outlet.

BASIC 60

NG CASTORE BASIC 60

60 L/min

Purity>98.5% @ 60 L/min
PressureInlet – 14.5 psi (1 bar)
NoiseNone (no moving parts)
Size (W×D×H)28×35×120 cm

Highest flow compact BASIC model. Optional dryer for CASTORE BASIC available.

High-Volume Models — 150 to 350 L/min

BASIC 150

NG CASTORE BASIC 150

150 L/min

Purity>99% @ 120 L/min
PressureInlet – 7.25 psi (0.5 bar)
Air Req.400 L/min @ 150 L/min N₂
Size (W×D×H)35×34×120 cm

BASIC 180

NG CASTORE BASIC 180

180 L/min

Purity>98.5% @ 180 L/min
PressureInlet – 10 psi (0.7 bar)
Air Req.540 L/min @ 180 L/min N₂
Size (W×D×H)35×34×120 cm

BASIC 200

NG CASTORE BASIC 200

200 L/min

Purity>97.5% @ 200 L/min
PressureInlet – 10 psi (0.7 bar)
Air Req.640 L/min @ 200 L/min N₂
Size (W×D×H)35×34×120 cm

BASIC 350

NG CASTORE BASIC 350

350 L/min

Purity96–99.5%
PressureInlet – 14.5 psi (1 bar)
Air Req.880 L/min @ 350 L/min N₂
Size (W×D×H)35×34×145 cm

Highest-volume BASIC model. Central nitrogen supply for entire laboratory facilities. ½" BSPP connections. No electrical parts — silent operation.

Electronic Membrane · External Air Required

NG CASTORE PRO

Electronically controlled membrane nitrogen generators with LCD touchscreen and RS-485. Exclusive electronic flow control optimizes purity while minimizing compressed air consumption. Optional dry air outlet on select models. Quieter than <35 dB(A) — silent enough for open labs. PRO HP variants deliver higher pressure for ELSD, TOC, ICP, and DSC/TGA applications.

PRO HP — High Pressure, Low Flow (ELSD / TOC / ICP / DSC/TGA)

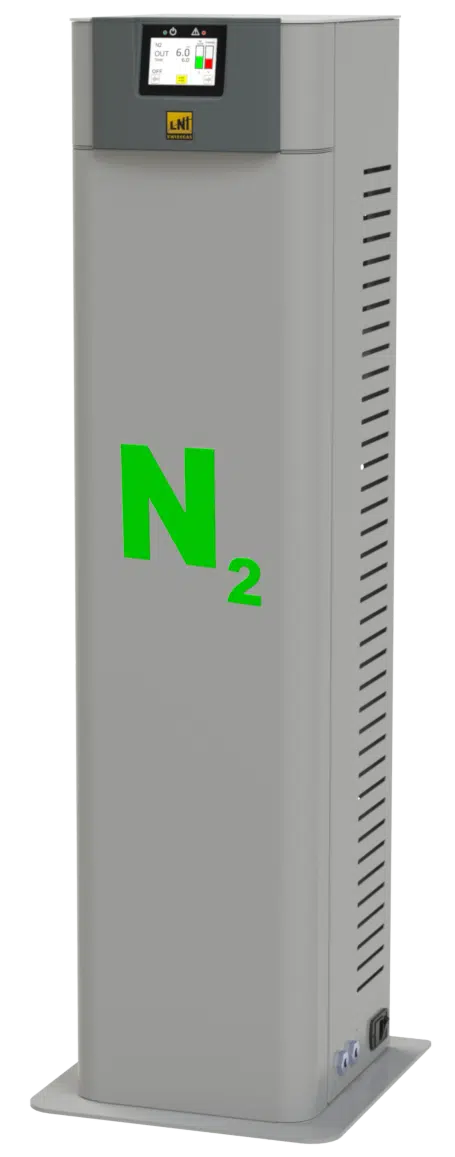

PRO HP 4

NG CASTORE PRO HP 4

4 L/min

Purity>99.5% @ 4 L/min
Dew Point<−40°C
PressureInlet – 7.25 psi (0.5 bar)
Noise<35 dB(A)
Size (W×D×H)28×32×120 cm

Smart energy-save mode. For ELSD, TOC, ICP, DSC/TGA. Optional O₂ sensor. LCD touchscreen + RS-485.

PRO HP 8

NG CASTORE PRO HP 8

8 L/min

Purity>99.5% @ 8 L/min
Dew Point<−40°C
PressureInlet – 7.25 psi (0.5 bar)
Noise<35 dB(A)
Size (W×D×H)28×32×120 cm

Higher flow HP variant. Same form factor as PRO HP 4. Smart energy-save mode, optional O₂ sensor.

PRO Standard — 25 to 60 L/min (LCMS / Solvent Evaporation)

PRO 25

NG CASTORE PRO 25

25 L/min

Purity>99.5% @ 10 L/min
PressureInlet – 14.5 psi (1 bar)
Noise<35 dB(A)
Size (W×D×H)28×32×120 cm

PRO 25.40 variant adds 40 L/min dry air outlet (dew point <−40°C). WiFi optional.

PRO 45

NG CASTORE PRO 45

45 L/min

Purity>99.5% @ 25 L/min
PressureInlet – 14.5 psi (1 bar)
Noise<35 dB(A)
Size (W×D×H)28×32×120 cm

PRO 45.40 variant adds 40 L/min dry air outlet. Optional O₂ sensor and WiFi.

PRO 60

NG CASTORE PRO 60

60 L/min

Purity>98.5% @ 60 L/min
PressureInlet – 14.5 psi (1 bar)
Noise<35 dB(A)
Size (W×D×H)28×32×120 cm

Highest flow standard PRO. PRO 60.40 adds 40 L/min dry air outlet. Optional O₂ sensor and WiFi module.

PRO 20.67

NG CASTORE PRO 20.67

N₂: 20 L/min · Air: 67 L/min

N₂ Purity>99.5% @ 10 L/min
Air Dew Point<−35°C
PressureInlet – 14.5 psi (1 bar)
Noise<35 dB(A)
Size (W×D×H)28×32×120 cm

Dual N₂ + high-volume air outlet. Highest air flow PRO model — 67 L/min dry regulated air alongside 20 L/min nitrogen. WiFi optional.

PRO High-Volume — 120 to 350 L/min

PRO 120

NG CASTORE PRO 120

120 L/min

Purity>98.5% @ 120 L/min
Dew Point<−70°C
PressureInlet – 22 psi (1.5 bar)
Noise<35 dB(A)
Size (W×D×H)35×32×120 cm

Best-in-class dew point (<−70°C) for a high-volume membrane generator. LCD, RS-485, optional O₂ sensor. Central lab or high-demand LCMS supply.

PRO 350

NG CASTORE PRO 350

350 L/min

Purity96–99.5%
Dew Point<−60°C
PressureInlet – 14.5 psi (1 bar)
Noise<35 dB(A)
Size (W×D×H)35×34×145 cm

Highest-flow PRO model — 350 L/min for central facility nitrogen distribution. LCD touchscreen + RS-485 + optional O₂ sensor. ½" BSPP connections.

Pneumatic Membrane · N₂ + Air + Exhaust

NG CASTORE 3G

Three-gas membrane generators — simultaneously producing nitrogen (curtain gas), dry instrument air (Gas 1/Gas 2), and exhaust air from a single unit and compressed air source. No electrical parts, zero noise. Purpose-designed for SCIEX, Waters, and other LC-MS instruments requiring both nitrogen curtain gas and sheath air from a single supply point.

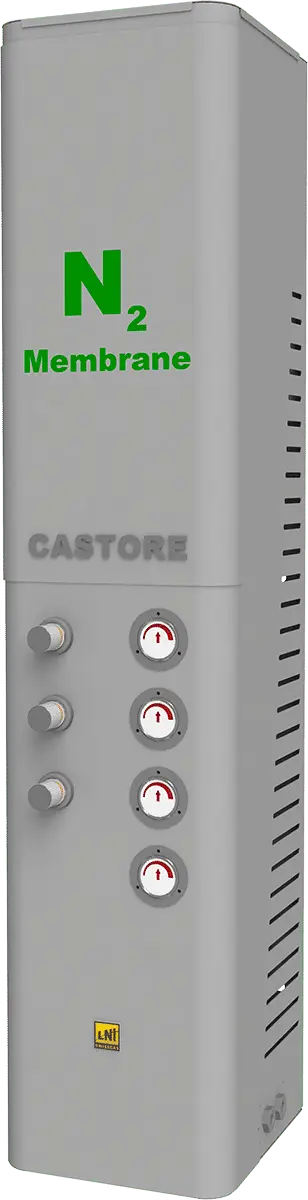

3G 10

NG CASTORE 3G 10

N₂: 10 · Air: 26 · Exh: 25 L/min

N₂ Purity>99.5% @ 5 L/min
Pressure (all)Up to 108 psi (7.5 bar)
NoiseNone (no moving parts)
Size (W×D×H)28×35×120 cm

3G 25

NG CASTORE 3G 25

N₂: 25 · Air: 26 · Exh: 25 L/min

N₂ Purity>99.5% @ 10 L/min
Pressure (all)Up to 108 psi (7.5 bar)
NoiseNone (no moving parts)
Size (W×D×H)28×35×120 cm

3G 45

NG CASTORE 3G 45

N₂: 45 · Air: 26 · Exh: 25 L/min

N₂ Purity>99.5% @ 25 L/min
Pressure (all)Up to 108 psi (7.5 bar)
NoiseNone (no moving parts)
Size (W×D×H)28×35×120 cm

3G 60

NG CASTORE 3G 60

N₂: 60 · Air: 26 · Exh: 25 L/min

N₂ Purity>99.5% @ 45 L/min
Pressure (all)Up to 108 psi (7.5 bar)
NoiseNone (no moving parts)
Size (W×D×H)28×35×120 cm

Highest flow 3G model. All three outlets independently regulated. Optional 50 L N₂ + 25 L Air buffer tank accessory available.

What is 3G?

The 3G designation means three simultaneous gas outlets from one unit: Curtain Gas (high-purity N₂), Gas 1 / Gas 2 (dry instrument air for source and sheath), and Exhaust (regulated compressed air). All three independently pressure-regulated. No electrical components — purely pneumatic operation with zero noise.

Benchtop Membrane · Ultra-Low Profile

NG CASTORE DT

Desktop-format membrane nitrogen generators with an ultra-compact horizontal profile (just 15 cm tall). Pneumatically controlled, zero noise, no moving parts. Ideal for lab benches where vertical space is at a premium. Requires external compressed air.

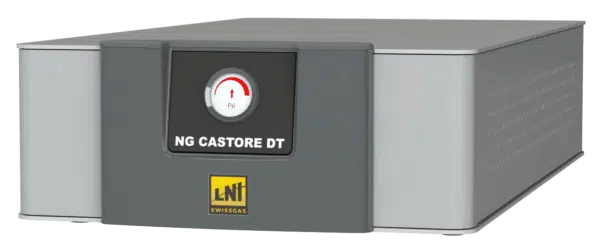

DT 10

NG CASTORE DT 10

10 L/min

Purity>99.5% @ 3 L/min
Dew Point<−60°C
PressureInlet – 7.25 psi (0.5 bar)
NoiseNone (no moving parts)
Size (W×D×H)36×67×15 cm

Desktop-mount design, only 15 cm tall. Fits on instrument shelves. Pneumatic control, no electrical components. For LCMS and solvent evaporation.

DT 35

NG CASTORE DT 35

35 L/min

Purity>99.5% @ 9 L/min
Dew Point<−60°C
PressureInlet – 7.25 psi (0.5 bar)
NoiseNone (no moving parts)
Size (W×D×H)36×67×15 cm

Higher flow DT variant. Same ultra-low 15 cm profile. Depth extends to 75 cm with external filters installed. For high-flow LCMS evaporation.

Technology

Why choose NG Series

⚗️

PSA Technology

Pressure Swing Adsorption separates nitrogen from air using molecular sieves. Delivers ultra-high purity nitrogen continuously without liquid nitrogen or cylinders.

🔄

Membrane Technology

Hollow fiber membrane modules separate nitrogen from compressed air. Low maintenance, no moving parts — ideal for high-volume industrial and central lab supply.

🔌

Integrated Compressor

XS iQ and XL iQ models include built-in scroll compressors — no compressed air infrastructure required. Truly plug-and-play installation.

🎯

LC-MS Grade Purity

Purpose-built for demanding LC-MS applications. Meets OEM specifications for Agilent, Waters, Sciex, Shimadzu, and Thermo Fisher instruments.

📱

Smart Controls

Touchscreen LCD, RS-485, and RS-232 standard. Real-time purity monitoring, flow control, and remote alarm capability. Optional WiFi on select models.

♻️

Eliminate Cylinders

End cylinder rentals, deliveries, and handling risks. Continuous on-demand generation ensures uninterrupted supply at a fraction of the cylinder cost.

Applications

Proven performance across
analytical methods

From routine LC-MS to high-throughput ICP-MS, NG Series generators supply reliable high-purity nitrogen for the widest range of laboratory applications.

LC-MS / LC-MS/MS

Nebulizer gas, curtain gas, and drying gas for liquid chromatography-mass spectrometry. Meets OEM purity specifications.

GC-FID / GC-NPD

Make-up gas and detector gas for gas chromatography. Ultra-low hydrocarbon content ensures detector baseline stability.

ICP-MS Collision Cell

UHP collision cell gas supply via optional 99.9999% outlet on XL iQ models. Removes polyatomic interferences reliably.

FTIR Purge Gas

Moisture-free nitrogen purge for FTIR optics and sample compartments. Eliminates CO₂ and water vapor interference.

Sample Evaporation

High-flow nitrogen blowdown for solvent evaporation in sample preparation workflows. Turbo Vap and similar systems.

ELSD Detection

Nebulizer gas for Evaporative Light Scattering Detection in LC. Consistent purity critical for detector sensitivity.

Incubators & Storage

Inert atmosphere generation for cell culture incubators, dry storage cabinets, and sensitive sample preservation.

Agilent MP-AES

Dedicated NGA CASTORE MP-AES model supplies both the high-flow N₂ and dry instrument air required for Agilent's Microwave Plasma Atomic Emission Spectrometers.

3D Laser Printing (SLS/SLM)

CASTORE XL iQ 3D Printing model purges oxygen from build chambers to prevent material oxidation during laser sintering and melting processes. Programmable purge algorithm included.

Central Lab Supply

CASTORE BASIC and PRO models serve as central nitrogen supply points for entire laboratory facilities via distribution manifolds.

Quick Reference

Model comparison

Compare key specifications across the NG Series lineup to identify the ideal generator for your application.

Model	Flow Rate (Max)	Purity	Pressure	Technology	Air Source
NG EOLO XL 5	5 L/min	99.9999%	Inlet – 2 bar	PSA	External
NG EOLO XL 10	10 L/min	99.9999%	Inlet – 2 bar	PSA	External
NG EOLO XL 16	16 L/min	99.9995%	Inlet – 2 bar	PSA	External
NG EOLO XL 18	18 L/min	99.999%	Inlet – 2 bar	PSA	External
ZNG EOLO XL 5 / 10 / 18	5–18 L/min	99.9999% / 99.9995%	Inlet – 2 bar	PSA + CH4 Catalyst	External
NG SIRIO CD	20 L/min	99.999%	5.5 bar	PSA	Built-in (×2 piston)
NG SIRIO CD HP	20 L/min	99.999%	7.0 bar	PSA	Built-in (×2 piston)
NG RACK 4U C 150	150 cc/min	>99.9999%	5.5 bar	PSA	Built-in
NG RACK 4U C 500	500 cc/min	>99.999%	4 bar	PSA	Built-in
NG RACK 5U 600	600 cc/min	>99.9999%	Up to 8 bar	PSA	External
NG RACK 5U 1000	1000 cc/min	>99.9995%	Up to 8 bar	PSA	External
NG RACK 7U 2000	2000 cc/min	>99.9999%	Up to 8 bar	PSA	External
NG EOLO 500	500 cc/min	99.9999%	Inlet – 2 bar	PSA	External
NG EOLO 750	750 cc/min	99.9999%	Inlet – 2 bar	PSA	External
NG EOLO 1300	1300 cc/min	99.995%	Inlet – 2 bar	PSA	External
NG EOLO 4000	4000 cc/min	99.0%	Inlet – 2 bar	PSA	External
NG SIRIO 1500	1500 cc/min	99.9999%	5.5 bar	PSA	External
NG SIRIO 3000	3000 cc/min	99.9995%	5.5 bar	PSA	External
NG SIRIO 5000	5000 cc/min	99.99%	5.5 bar	PSA	External
NG SIRIO 5000 HP	5000 cc/min	99.999%	8 bar	PSA	External
NG SIRIO 8000	8000 cc/min	99.7%	5.5 bar	PSA	External
NG CASTORE XS iQ 15	15 L/min	LC-MS Grade	8 bar	Membrane	Built-in
NG CASTORE XS iQ 18	18 L/min	LC-MS Grade	8 bar	Membrane	Built-in
NG CASTORE XS iQ 24	24 L/min	LC-MS Grade	8 bar	Membrane	Built-in
NG CASTORE XS iQ 36	36 L/min	LC-MS Grade	8 bar	Membrane	Built-in
NG CASTORE XL iQ 20	20 L/min	LC-MS Grade + UHP	8 bar	Membrane	Built-in
NG CASTORE XL iQ 40	40 L/min	LC-MS Grade + UHP	8 bar	Membrane	Built-in
NG CASTORE XL iQ 50	50 L/min	LC-MS Grade + UHP	8 bar	Membrane	Built-in
NG CASTORE XL iQ 70	70 L/min	LC-MS Grade + UHP	8 bar	Membrane	Built-in
NG CASTORE XL iQ 50 (LCMS)	50 L/min	LCMS Grade (99.9%)	8 bar	Membrane	Built-in
NG CASTORE XL iQ 3D Printing	70 L/min	<500 ppm O₂ @ 10 L/min	9 bar	Membrane	Built-in
NGA CASTORE XL iQ 20.40	N₂: 20 + Air: 40 L/min	LCMS Grade (99.9%)	N₂: 9 bar · Air: 10 bar	Membrane	Built-in
NGA CASTORE XL iQ 40.40	N₂: 40 + Air: 40 L/min	LCMS Grade (99.9%)	N₂: 9 bar · Air: 10 bar	Membrane	Built-in
NGA CASTORE XL iQ 20.60	N₂: 20 + Air: 60 L/min	LCMS Grade (99.9%)	N₂: 9 bar · Air: 10 bar	Membrane	Built-in
NGA CASTORE XL iQ MP AES	N₂: 40 + Air: 40 L/min	<500 ppm O₂ @ 10 L/min	8 bar (both)	Membrane	Built-in
NGA CASTORE XL iQ SCIEX	N₂: 20 + 2× Air: 30 L/min	LCMS Grade (99.9%)	N₂: 8 bar · Air: 7+4 bar	Membrane	Built-in
NGA CASTORE XL iQ SCIEX 7500	N₂: 32 + 2× Air: 25–26 L/min	LCMS Grade (99.9%)	N₂: 4.5 bar · Air: 7.25 bar	Membrane	Built-in
NGA CASTORE XS iQ SHI (Shimadzu)	40 L/min combined	LCMS Grade (99.9%)	8 bar	Membrane	Built-in
NGA CASTORE XL iQ QSight (PerkinElmer)	N₂: 15 + Air: 34–67 L/min	LCMS Grade (99.9%)	8 bar	Membrane	Built-in
NG CASTORE BASIC 10–60	10–60 L/min	Up to 99.5%	Inlet – 1 bar	Membrane	External
NG CASTORE PRO 25–120	25–120 L/min	Up to 99.5%	Inlet – 1.5 bar	Membrane	External
NG CASTORE BASIC 350	350 L/min	96–99.5%	Inlet – 1 bar	Membrane	External

NG SeriesNitrogen Generators

Five product families for every lab

NG EOLO Series

NG EOLO XL

NG SIRIO Series

NG RACK Series

NG CASTORE XS iQ

NG CASTORE XL iQ

NG CASTORE BASIC / PRO

CASTORE XL iQ 3D Printing

NGA CASTORE iQ Series

NG EOLO Series

NG EOLO 500

NG EOLO 750

NG EOLO 1300

NG EOLO 4000

NG EOLO XL Series

NG EOLO XL 5

NG EOLO XL 10

NG EOLO XL 16

NG EOLO XL 18

NG SIRIO Series

NG SIRIO 1500

NG SIRIO 3000

NG SIRIO 5000

NG SIRIO 5000 HP

NG SIRIO 8000

NG SIRIO CD / CD HP

NG SIRIO CD

NG SIRIO CD HP

NG RACK Series

NG RACK 4U C

NG RACK 5U

NG RACK 7U

NG CASTORE XS iQ Series

NG CASTORE XS iQ 15

NG CASTORE XS iQ 18

NG CASTORE XS iQ 24

NG CASTORE XS iQ 36

NG CASTORE XL iQ Series

NG CASTORE XL iQ 20

NG CASTORE XL iQ 40

NG CASTORE XL iQ 50

NG CASTORE XL iQ 70

NG CASTORE XL iQ 50

NG CASTORE XL iQ 3D Printing

NGA CASTORE XL iQ — Instrument-Specific Generators

NGA CASTORE XL iQ 20.40

NGA CASTORE XL iQ 40.40

NGA CASTORE XL iQ 20.60

NGA CASTORE XL iQ MP AES

NGA CASTORE XL iQ SCIEX

NGA CASTORE XL iQ SCIEX 7500

NGA CASTORE XS iQ SHI

NGA CASTORE XL iQ QSight

NG CASTORE BASIC

NG CASTORE BASIC 10

NG CASTORE BASIC 25

NG CASTORE BASIC 45

NG CASTORE BASIC 60

NG CASTORE BASIC 150

NG CASTORE BASIC 180

NG CASTORE BASIC 200

NG CASTORE BASIC 350

NG CASTORE PRO

NG CASTORE PRO HP 4

NG CASTORE PRO HP 8

NG CASTORE PRO 25

NG CASTORE PRO 45

NG CASTORE PRO 60

NG CASTORE PRO 20.67

NG CASTORE PRO 120

NG CASTORE PRO 350

NG CASTORE 3G

NG CASTORE 3G 10

NG CASTORE 3G 25

NG CASTORE 3G 45

NG CASTORE 3G 60

NG CASTORE DT

NG CASTORE DT 10

NG Series
Nitrogen Generators

Proven performance across
analytical methods
