Gas generation system troubleshooting steps are the systematic diagnostic procedures technicians use to identify and resolve operational failures in on-site gas generators, including hydrogen, nitrogen, and zero air units. Unplanned downtime on instruments like GC, LCMS, and ICP costs far more than the repair itself. The hidden expense is the lost analytical time, the delayed results, and the scramble to source cylinder gas as a backup. A structured fault analysis approach, grounded in controller data and verified measurements, cuts that downtime significantly.
1. What are the essential initial gas generation system troubleshooting steps?
Start every diagnosis at the controller display. Controller fault codes take roughly 30 seconds to check and immediately point you toward the failing subsystem. Skipping this step and going straight to physical inspection wastes time and risks misdiagnosis.
After reading the fault codes, verify battery health. A healthy battery reads approximately 12.6V at rest. Battery voltage below 9.6V during cranking signals a battery that can no longer hold a load and must be replaced before any other diagnosis continues. A weak battery mimics multiple other faults, including fuel delivery failures and ignition problems.
Next, document every symptom you observe during a manual start attempt. Note whether the unit cranks but does not fire, fires and shuts down immediately, or fails to crank at all. This symptom log becomes your reference point as you work through each subsystem. Reviewing common failure signs before you begin saves additional diagnostic time.
Pro Tip: Use a combustion gas analyzer costing $400–$1,500 to measure CO, O2, and draft during initial diagnostics. Combustion analyzers often pay for themselves on the first major service job by confirming code compliance and pinpointing combustion faults before they escalate.
2. How to diagnose and address common fuel-related issues
Fuel quality is the most frequently overlooked cause of gas generation failures. Fuel older than two months becomes stale, forming gum and residue that clogs carburetor passages and fuel filters. The engine may crank normally but fail to sustain combustion, which technicians often misread as an ignition or electrical fault.
Work through the fuel system in this order:
- Fuel age: Drain and replace any fuel that has been sitting for more than two months. Stale fuel is the single most common cause of hard-start and no-start conditions.
- Carburetor bowl: Remove and inspect the carburetor bowl for varnish deposits. Clean with carburetor cleaner and confirm all jets are clear before reassembly.
- Fuel cap vent: A blocked fuel cap vent creates a vacuum in the tank that starves the engine of fuel. Remove the cap briefly during a start attempt to confirm or rule out this cause.
- Fuel lines and separators: Inspect all fuel lines for cracks, kinks, and blockages. Replace any fuel water separator that shows contamination.
- Fuel shutoff valve: Confirm the shutoff valve is fully open and that fuel pressure at the inlet meets the manufacturer’s specification.
Fresh fuel and clean components are critical to system reliability. Stale fuel causes carburetor clogging and engine wear that compounds every subsequent troubleshooting step.
Pro Tip: When reassembling fuel system components, always replace O-rings and gaskets rather than reusing them. A failed seal after reassembly creates a new leak that is harder to trace than the original fault.
3. What are the key electrical troubleshooting steps for gas generator controls and valves?
Electrical faults in gas generation systems fall into two categories: control signal failures and component failures. Distinguishing between them before replacing parts saves significant cost and labor.
Gas valves are solenoid operated. To test one correctly, measure voltage at the valve terminals during a call-for-heat cycle. 24V AC at the valve terminals confirms the control board is sending the correct signal. If voltage is absent, the fault is in the control board or wiring, not the valve itself.
If 24V AC is confirmed, measure the solenoid coil resistance with a multimeter. Infinite resistance on the coil indicates an open circuit, meaning the coil has failed and the valve requires replacement. A reading within the manufacturer’s specified range means the coil is functional and the fault lies elsewhere.
| Test | Expected Result | Fault Indicated |
|---|---|---|
| Voltage at valve terminals | 24V AC during call-for-heat | No voltage: control board or wiring fault |
| Solenoid coil resistance | Within manufacturer spec | Infinite resistance: coil failure, replace valve |
| Wiring continuity | No breaks or shorts | Damage found: repair or replace wiring harness |
| Control board fault codes | Specific subsystem code | No code: intermittent or sensor fault |
Always de-energize the system before probing wiring connections. Confirm de-energization with a non-contact voltage tester before touching any terminal. Review the electrical requirements for your specific system to confirm correct voltage thresholds before testing.
4. How to safely detect and resolve gas leaks in generation systems
Gas leak detection requires a structured, methodical approach. Electronic combustible gas detectors identify small, intermittent leaks that soap bubbles miss entirely. Soap bubble testing is not an acceptable primary detection method for laboratory or industrial gas systems.
Follow this sequence when a leak is suspected:
- Evacuate immediately if you smell gas. Treat any gas odor as an emergency. Ventilate the area, eliminate ignition sources, and do not attempt diagnosis until the space is safe.
- Perform a pressure gauge check. Attach a calibrated pressure gauge to the system and record the baseline reading. A pressure drop over five minutes confirms a leak is present.
- Isolate appliances. Disconnect all downstream instruments from the pipework. Retest the pipework alone to confirm whether the leak is in the distribution system or at an instrument connection.
- Sectional testing. Isolate appliances and test pipework independently to pinpoint the leak location. Test each branch separately until the leaking section is identified.
- Scan with an electronic detector. Run the detector probe along all joints, fittings, and valves in the identified section. Mark each suspect point before attempting any repair.
- Confirm repair. After completing the repair, repeat the full pressure test to verify the system holds pressure. Document the result before returning the system to service.
Compliance with ANSI Z21.13 governs safety requirements for gas-fired equipment in laboratory and industrial settings. Any repair that cannot be confirmed by a passing pressure test must be escalated before the system is returned to operation.
5. How to address gas system efficiency problems and prevent recurrence
Gas system efficiency problems often appear as gradual performance degradation rather than sudden failure. Purity drift in nitrogen or hydrogen output, reduced flow rates, and increased cycle times are all early indicators that a component is wearing or a filter is saturating.
Check the following on a scheduled basis to prevent efficiency losses:
- Inlet filters and dryers: Saturated inlet filters restrict flow and reduce output purity. Replace on the manufacturer’s recommended schedule, not just when a fault code appears.
- Membrane or PSA module condition: Membrane separators and pressure swing adsorption modules degrade over time. Compare current output purity against the performance benchmarks for your generator model to identify when a module replacement is due.
- Compressor oil level and condition: Low or degraded compressor oil reduces compression efficiency and contaminates output gas. Check oil level and color at every scheduled service interval.
- Outlet pressure settings: Confirm outlet pressure matches the instrument manufacturer’s specification. Pressure set too high wastes gas and stresses downstream regulators. Pressure set too low causes instrument errors that are often misdiagnosed as analytical problems.

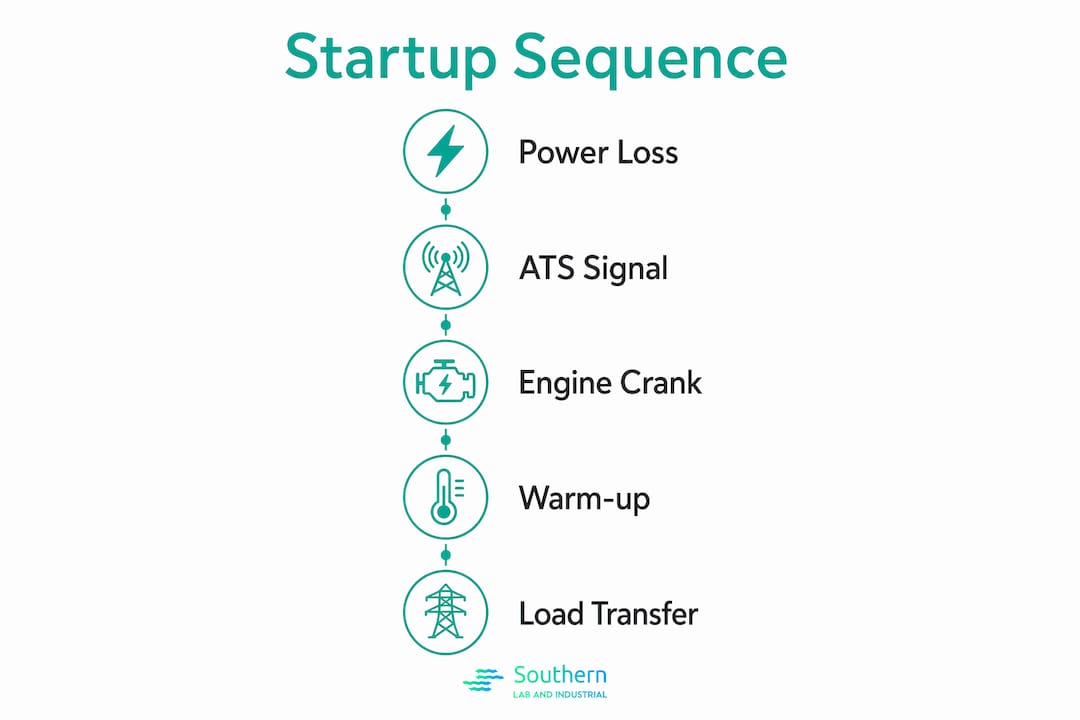

Reviewing the startup sequence for your unit after any maintenance confirms that all subsystems are returning to correct operating parameters before you reconnect instruments.
6. When to escalate: recognizing faults that require immediate action
Some faults have zero tolerance for delay. Cracked heat exchangers must be replaced immediately per ANSI Z21.13. Repair is not permitted. Operating a system with a cracked heat exchanger risks fatal carbon monoxide exposure, and no analytical priority justifies that risk.
Escalate immediately when you encounter any of the following:
- A confirmed gas leak that cannot be isolated and repaired with available tools and parts
- Carbon monoxide readings above safe thresholds on a combustion analyzer
- A cracked or visibly damaged heat exchanger
- Persistent fault codes that return within one operating cycle after clearing
- Any fault that affects the safety interlock or automatic shutoff function
Most control boards log fault codes that identify subsystem failures. Using that logged data cuts diagnostic time and reduces unnecessary disassembly. If a fault code returns repeatedly, the root cause has not been resolved and the system should be taken offline until a qualified technician completes a full inspection.
For complex integration faults, reviewing real-world integration challenges provides context on how similar issues have been resolved in comparable laboratory and facility environments.
Key takeaways
Systematic gas generation fault analysis, starting with controller data and verified measurements, is the fastest and safest path to restoring reliable operation.
| Point | Details |
|---|---|
| Start with fault codes | Controller codes take 30 seconds to check and immediately narrow the failing subsystem. |
| Verify battery before all else | A battery below 9.6V during cranking mimics multiple faults and must be replaced first. |
| Test voltage before replacing valves | Confirm 24V AC at valve terminals before concluding the gas valve has failed. |
| Use electronic leak detectors | Soap bubbles miss small leaks; electronic combustible gas detectors are the required standard. |
| Escalate heat exchanger cracks immediately | ANSI Z21.13 prohibits repair; replacement is mandatory to prevent carbon monoxide exposure. |
What I’ve learned from watching technicians troubleshoot gas systems the hard way
The most expensive mistake I see technicians make is replacing the gas valve before testing the control signal. It happens constantly. A technician sees no heat, checks for obvious mechanical damage, finds none, and orders a new valve. The new valve goes in, the system still does not fire, and now the technician has to trace the wiring anyway. Testing voltage and wiring first takes five minutes with a multimeter. Skipping it costs hours and parts budget.
The second pattern I see is over-reliance on visual inspection for leak detection. Soap bubbles on a fitting look reassuring when nothing bubbles up. But an electronic detector will find the same fitting leaking at a rate too slow to form a visible bubble, and too fast to ignore in a closed laboratory space. The detector is not optional equipment. It is the minimum standard for any gas system work.
The third issue is treating fault codes as the end of the diagnosis rather than the beginning. A code tells you which subsystem reported a problem. It does not tell you whether the problem is in the component itself, the wiring to it, or the sensor reporting on it. The code is a starting point. The measurement is the answer.
One practical habit that separates efficient technicians from slow ones: document every fault, every measurement, and every repair in a running log for each unit. Patterns emerge over time. A unit that throws the same fuel fault every six weeks is telling you the fuel system needs a scheduled service, not another reactive repair.
— Kris
SLI’s gas generation systems and support for lab technicians
Troubleshooting is faster and less costly when the equipment is designed for laboratory-grade reliability from the start. SLI supplies on-site lab gas generators including hydrogen, nitrogen, and zero air units from LNI Swissgas and Nel Hydrogen, built specifically for instruments like GC, LCMS, ICP, and FTIR.
SLI provides turnkey installation, local technical support along the Gulf Coast, and ongoing maintenance to keep your systems running within specification. If your generator is showing recurring faults or purity drift, the SLI service team can assess the unit against published performance benchmarks and recommend a corrective path. Contact SLI directly through service and support to schedule a diagnostic review or discuss a preventative maintenance program for your facility.
FAQ
What is the first step in troubleshooting a gas generation system?
Check the controller display for fault codes. Controller fault codes take roughly 30 seconds to read and immediately identify the failing subsystem, eliminating guesswork from the start.
How do I know if my gas generator has a fuel problem?
Drain and inspect the fuel. Fuel older than two months forms gum and residue that clogs carburetors and causes hard-start or no-start conditions that mimic ignition faults.
What is the correct way to test a gas valve solenoid?
Measure voltage at the valve terminals during a call-for-heat cycle. If 24V AC is present, measure coil resistance with a multimeter. Infinite resistance confirms coil failure and the valve must be replaced.
Can I use soap bubbles to check for gas leaks?
Soap bubbles are not sufficient for gas leak detection. Electronic combustible gas detectors identify small, intermittent leaks that soap bubbles miss, and are the required standard for laboratory and industrial gas systems.
When must a heat exchanger be replaced rather than repaired?
A cracked heat exchanger must be replaced immediately. ANSI Z21.13 prohibits repair of cracked heat exchangers because continued operation risks fatal carbon monoxide exposure.
